Are you confused about which types of end mills to use for your CNC machining projects? With numerous options available, choosing the right end mill can significantly impact your machining efficiency and the quality of your finished product.
End mills are typically installed in the spindle of a CNC machine or milling machine. The spindle rotates the end mill, allowing it to perform various cutting operations, such as milling, drilling, and slotting. During installation, the shank of the end mill is securely clamped in the tool holder or collet of the spindle, ensuring that the end mill remains stable and can precisely machine the workpiece.
In this guide, we’ll break down the eight most common types of end mills, explaining their unique features and applications. Whether you’re a seasoned machinist or just starting, you’ll gain clear insights into each type, helping you make informed decisions for your projects.

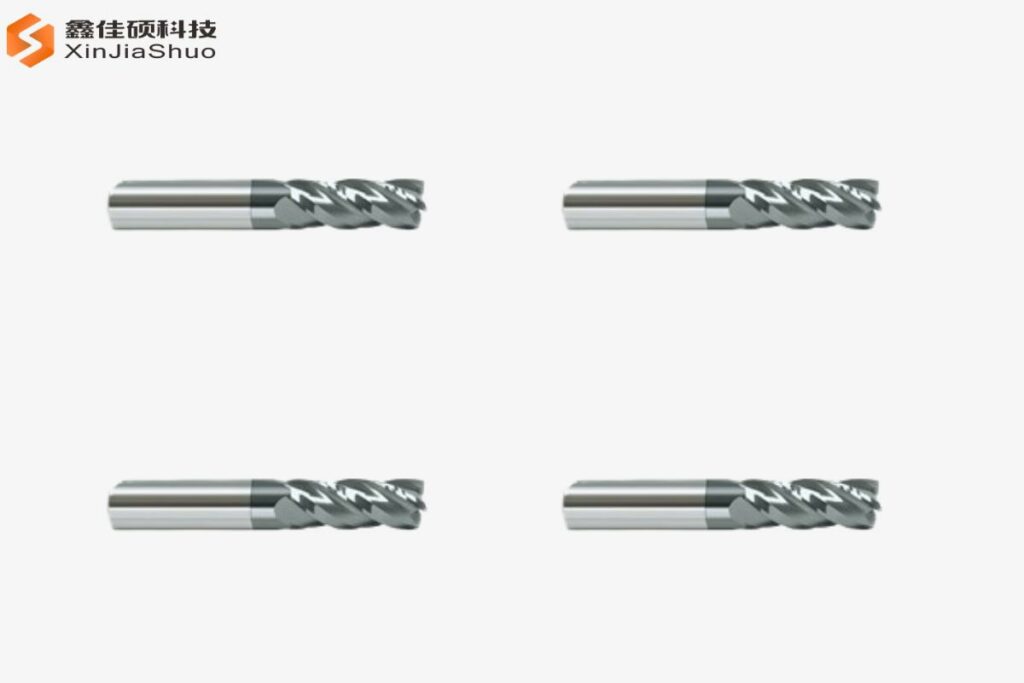

1. Square End Mills
Square end mills are versatile cutting tools with flat ends, ideal for creating sharp edges and precise cuts. Most end mill materials are either solid carbide end mills or made from cobalt steel alloys, usually known as high-speed steel.
Their defining characteristic is the square-shaped tip, which allows them to cut straight down into material, making them perfect for slotting, profiling, and plunge cutting.
Square end mills are widely used in various machining applications, especially for producing flat-bottomed cavities and clean, 90-degree corners. They are most effective when you need to machine straight edges or remove material evenly across a flat surface.
Use square end mills when precision and clean, sharp edges are required, especially in projects involving metal, wood, or plastic.

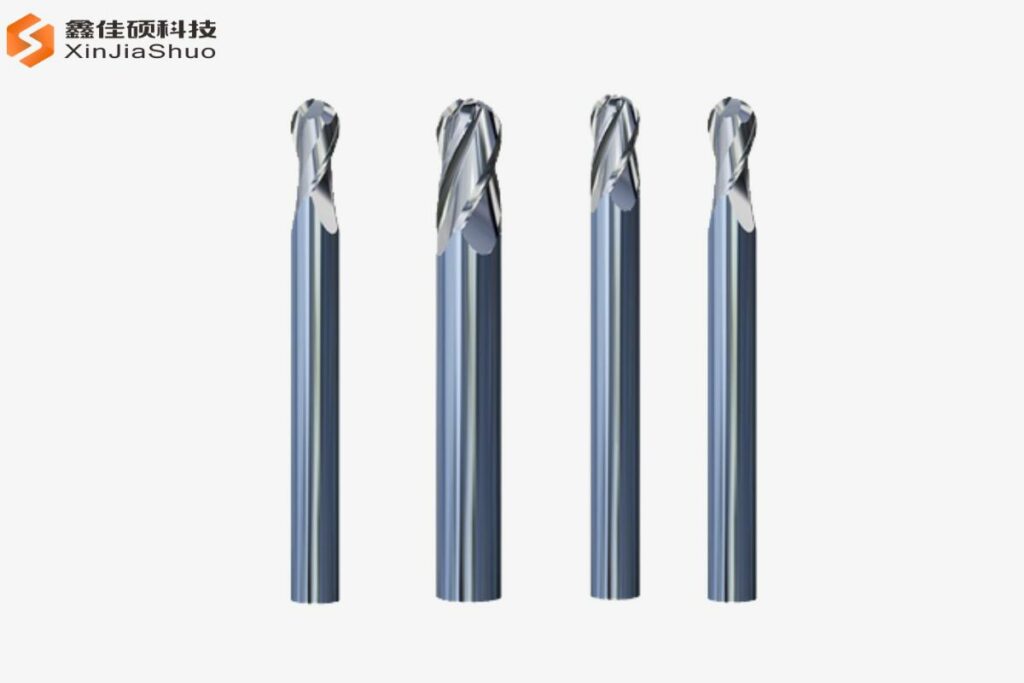

2. Ball End Mills
Ball end mills feature a rounded tip, designed to create smooth, contoured surfaces in a workpiece. This shape allows them to cut in all directions, making them ideal for 3D contouring, sculpting, and complex surface finishing.
These end mills are commonly used in mold-making, die-casting, and intricate detail work, where precise curves and rounded edges are essential. Ball end mills excel in applications requiring smooth surface finishes and detailed geometry.
Use ball end mills when working on projects that demand intricate designs or when finishing 3D surfaces.
3. Corner Radius End Mills
Corner radius end mills are designed with a rounded edge at the cutting tip, blending the benefits of square and ball end mills. This design reduces tool wear and chipping, enhancing tool life and performance.
These types of end mills are ideal for machining corners with reduced stress concentrations, making them perfect for molds, dies, and components requiring stronger, smoother edges. Unlike square-end mills, they produce less sharp edges, and unlike ball-end mills, they maintain some angular precision.
4. Roughing End Mills
Roughing end mills are a specific type of end mills designed for rapid material removal. They feature serrated cutting edges that break up the material into smaller chips, reducing heat and minimizing load on the tool. This design allows for aggressive cuts, making roughing end mills ideal for high-volume, heavy-duty machining tasks.
These types of end mills are commonly used in roughing operations where the goal is to quickly remove large amounts of material before finishing. They are perfect for projects involving tough materials like steel or titanium, where efficiency is critical.
5. Finishing End Mills
Finishing end mills are designed with a smooth cutting edge and finer flutes, allowing them to produce a high-quality surface finish. These end mills excel in precision tasks where a smooth, polished surface is essential.
The primary benefit of finishing end mills is their ability to deliver excellent surface finishes with minimal tool marks, making them ideal for final passes in machining operations.

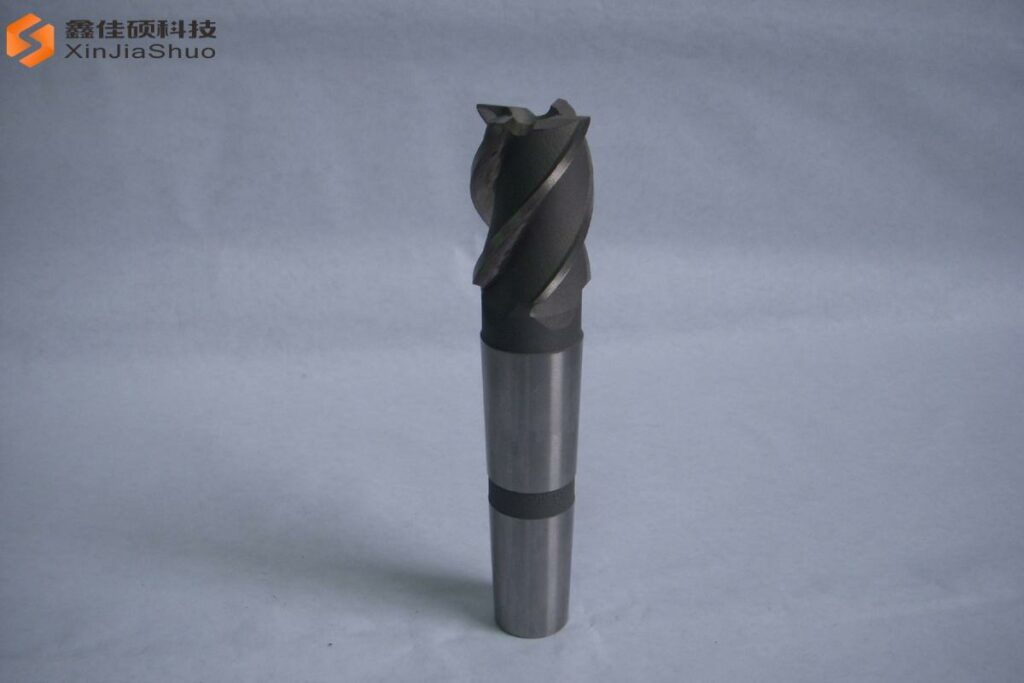

6. Tapered End Mills
Tapered end mills feature a gradually narrowing profile, making them ideal for machining angled or tapered surfaces. This unique design allows for more precise cuts in deep cavities or complex contours where standard end mills might struggle.
The primary benefit of tapered end mills is their ability to create detailed features with varying depths, especially in mold-making, die-casting, and complex 3D machining. These types of end mills excel in projects requiring accurate, angled cuts or when working with intricate designs that demand consistent precision.
7. Drill End Mills
Drill end mills are versatile tools featuring a 60- or 90-degree point at the tip, equipped with two or four cutting edges. This design allows them to perform multiple functions, including spotting, drilling, milling, and countersinking, all with a single tool.
These end mills are particularly useful in operations where precision and efficiency are paramount, as they can start a hole, drill, and finish the cut without needing to change tools. Drill end mills are ideal for projects requiring precise entry points and clean, accurate cuts in metal, or plastic.

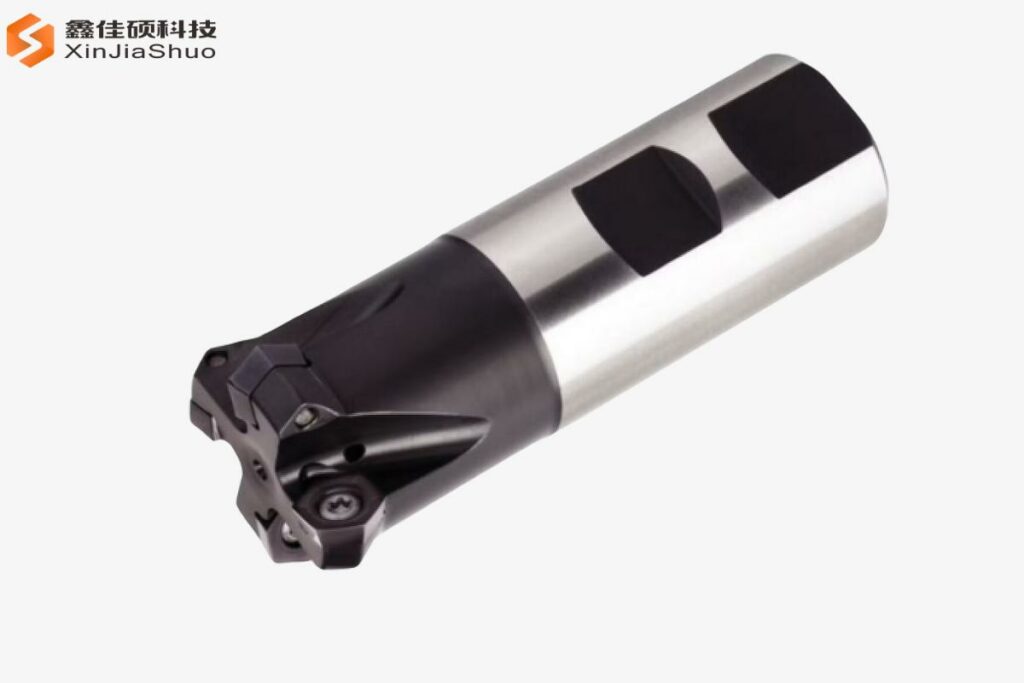

8. Weldon End Mills
Weldon end mills are distinguished by a flat area on the shank, known as a Weldon flat, which is designed to be securely gripped by set screws in tool holders. This design prevents the tool from slipping during heavy cutting operations, ensuring stability and precision.
These end mills are ideal for demanding machining tasks where high torque is applied, such as in roughing or heavy material removal. Weldon end mills are commonly used in CNC machining when tool security and performance are critical.
Conclusion
Choosing the right type of end mill is crucial for optimizing your machining operations, ensuring efficiency, and achieving the desired finish. From square end mills for precise cuts to ball end mills for intricate surfaces, each type serves a specific purpose.
Understanding the unique features and applications of these tools allows you to select the best option for your project, enhancing both the quality and speed of your work. By mastering the different types of end mills, you’ll be better equipped to tackle any machining challenge with confidence and precision.
