Types of CNC Milling Chucks: Which One is Right for Your Application?

Types of CNC Milling Chucks

In CNC milling operations, the milling chuck is a crucial component that holds the cutting tool in place and allows for precise machining of parts. There are several types of chucks available, each with its own unique features and benefits. In this article, we will provide an overview of the different types of CNC milling chucks and discuss the factors to consider when choosing the right chuck for your application.

What Is the CNC Milling Chuck?

A CNC milling chuck is a tool holder used in CNC milling machines to hold cutting tools. It is designed to securely clamp the cutting tool, such as an end mill or drill bit, and precisely position it for machining operations. The mill chucks are mounted on the static or live tool holder.

Different Types of Milling Chucks

CNC milling chucks come in various types, including collet chucks, drill chucks, power chucks, hydraulic chucks, and pneumatic chucks.

The type of milling chuck chosen for a particular application depends on factors such as the material being machined, part size and shape, cutting forces, tool holder compatibility, and speeds and feeds.

Choosing the right milling chuck is crucial for achieving accurate and efficient machining results.

Collet Chucks

Collet chucks are often used for holding small-diameter tools such as drills, reamers, and end mills. They work by contracting around the tool shaft with concentric rings, ensuring a secure grip. The key benefit of collet chucks is their ability to offer excellent accuracy and high clamping force.

Collet Chucks

Power Chucks

Power chucks use hydraulic or pneumatic pressure to tighten the jaws around the tool. These chucks are ideal for larger tools or heavy-duty machining applications. Power chucks offer high clamping force and accuracy, making them popular in manufacturing industries.

Hydraulic Chucks

Hydraulic chucks use oil pressure to clamp the tool holder in place. They offer excellent rigidity and dampening characteristics, making them ideal for high-speed machining operations. Hydraulic chucks provide exceptional accuracy and can be used for various applications, including turning and milling.

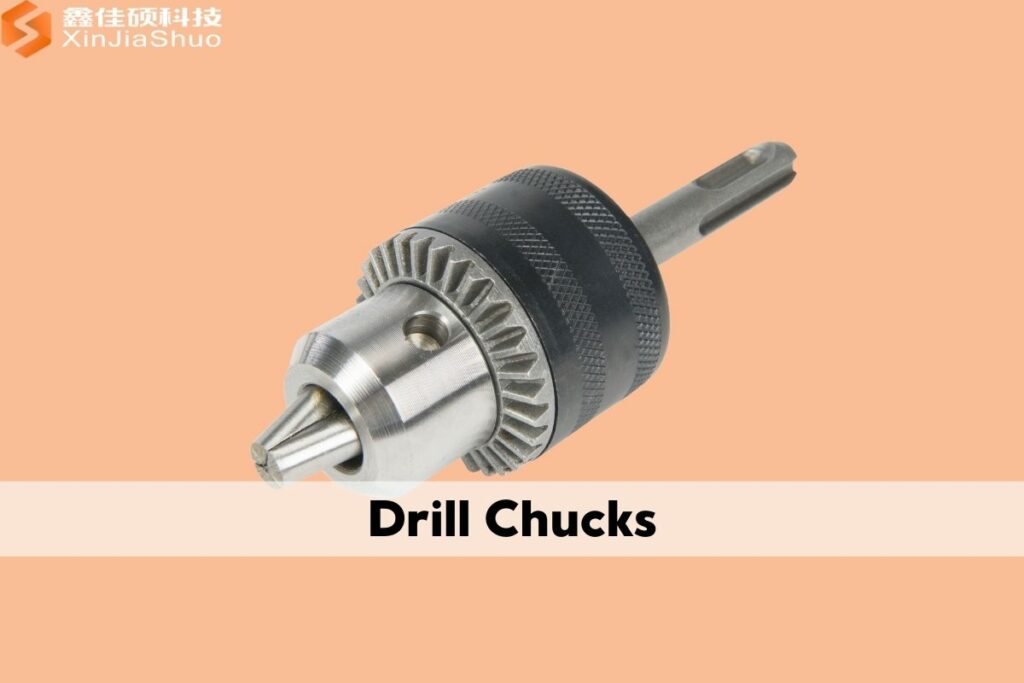

Drill Chucks

Drill chucks are designed specifically for holding drill bits securely in place. They feature a three-jaw design that allows for quick and easy tool changes. Drill chucks are common in many machining operations, especially those involving deep drilling.

Collet Chucks

Pneumatic Chucks

Pneumatic chucks work by using compressed air to clamp the tool holder in place. They are commonly used in high-speed and high-precision machining operations due to their fast clamping and releasing capabilities. Pneumatic chucks are known for their accuracy and repeatability.

How Do CNC Milling Chucks Work?

Milling chucks work by clamping the cutting tool onto a tapered shank that fits into the chuck body. The chuck has internal jaws or collets that can be tightened to grip the tool, providing a secure and rigid connection between the tool and the spindle of the milling machine.

Some milling chucks have a self-tightening mechanism that automatically increases the grip force as cutting forces are applied, ensuring the tool remains firmly in place during high-speed machining operations.

Milling chucks also have an outer shell designed to protect the internal mechanism from chips and coolant.

milling Chucks

How To Choose the Right Milling Chucks for Your Application?

Some factors when choosing the right CNC milling chucks:

Material being machined

The material being machined is an important factor to consider when choosing the type of chuck to use. The chuck must be strong enough to hold the tool securely in place, especially when machining hard or brittle materials.

Part size and shape

The size and shape of the part being machined can also affect the choice of the chuck. Large parts may require a power chuck for secure clamping, while smaller parts may require a collet chuck for precision machining.

Cutting forces

The cutting forces generated during machining operations can also impact the choice of the chuck. Heavy-duty machining operations with high cutting forces will require a chuck with high clamping force and rigidity, such as a power chuck.

Tool holder compatibility

It is essential to ensure that the chuck is compatible with the tool holder being used. Different types of chucks are designed to work with specific tool holders, so it is important to choose a chuck that is compatible with your tools.

Speeds and feeds

The speed and feed rates used during machining operations can also affect the choice of the chuck. High-speed machining requires a chuck with excellent dampening characteristics, while low-speed operations may require a chuck with high holding power.

Conclusion

In summary, selecting the right CNC milling chuck for your application is crucial for achieving accurate and efficient machining results. Each type of chuck has its own unique features and benefits. You should carefully consider factors such as the material being machined, part size and shape, cutting forces, tool holder compatibility, and speeds and feeds. By taking these factors into account, you can choose the right chuck for your specific machining needs.

What are the features of milling chucks and collets?

Milling chucks have several features that make them a versatile and reliable tool for machining operations. Here are some of the key features:

Grip force: Milling chucks offer high grip force, ensuring the cutting tool remains firmly in place during high-speed machining operations.

Self-tightening mechanism: Some milling chucks have a self-tightening mechanism that increases the grip force as cutting forces are applied.

Taper shank: The taper shank design ensures accurate alignment between the cutting tool and the spindle of the milling machine.

Clamping range: Milling chucks come in various sizes with different clamping ranges, allowing for flexibility in tool selection.

Protection: The outer shell of the milling chuck protects the internal mechanism from chips and coolant, increasing the longevity of the tool.

Quick-change: Some milling chucks offer a quick-change feature that allows for efficient tool changes without the need for additional tools.

Accuracy: High-quality milling chucks provide exceptional accuracy and repeatability, ensuring consistent performance even in demanding applications.

What are the applications of milling chucks?

Milling chucks are commonly used in a wide range of machining applications, including milling, drilling, reaming, and tapping. They are particularly useful for high-speed machining operations where accuracy, stability, and rigidity are critical.

Milling chucks can be used with a variety of cutting tools, including end mills, drills, and taps, making them an essential tool in many industries such as aerospace, automotive, and medical device manufacturing.

Additionally, their quick-change feature allows for efficient tool changes, saving time and increasing productivity.

Overall, milling chucks are a versatile and reliable tool that provides exceptional performance in a variety of machining applications.
