What is an End Mill Holder and Why is it Essential?

In the intricate world of precision engineering, the end mill holder plays a pivotal role, often working hand in hand with advanced equipment like the CMM machine. It ensures stability and accuracy during machining processes, enhancing the final product’s quality. Integrating seamlessly with various tools, this holder’s nuanced design and build elevate the capabilities of milling cutters and CNC setups. As we delve deeper, it’s essential to understand how such a seemingly simple tool can profoundly impact machining outcomes.

What Is an End Mill Holder?

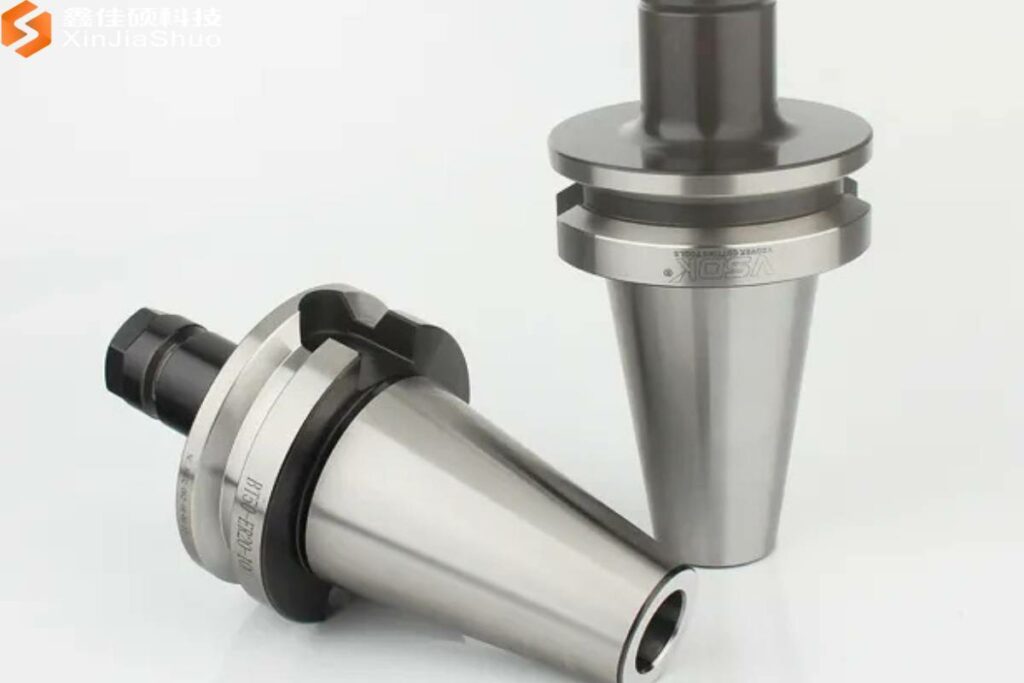

end mill holder

The end mill holder, often mistaken as a mere accessory, is a precision-engineered tool with distinct characteristics. Typically forged from high-grade steel or other durable metals, its design includes a tapered shank that seamlessly fits into the machine’s spindle. This taper ensures a secure grip, reducing any chances of slippage during operations. The holder’s flanged end ensures easy attachment and detachment from CNC setups. End mill holders secure the cutting tool with a set screw and have small diameters and various lengths available.

A retention knob or pull stud may be in its structure, holding it firmly in the machine’s spindle. The holder’s internal bore is tailored to accommodate end mills of various sizes snugly, ensuring optimal alignment. In a typical machining environment, this holder is the bridge between the milling cutter and the machine, guaranteeing precision and stability.

Why End Mill Holders are Crucial for Precision Machining

1. Ensuring Tool Stability

Stability in machining is a non-negotiable requirement. Even the most advanced machining setups can yield subpar results without a stable tool. End mill holders are designed to provide that much-needed stability. Their snug fit and tight grip ensures the tool remains unwavering, even during high-speed operations.

Essentially, they act as the anchor, ensuring the milling cutter operates at its peak efficiency. If you’re considering a different approach to tool holding, learning how to install a collet chuck in CNC lathes can offer alternative insights.

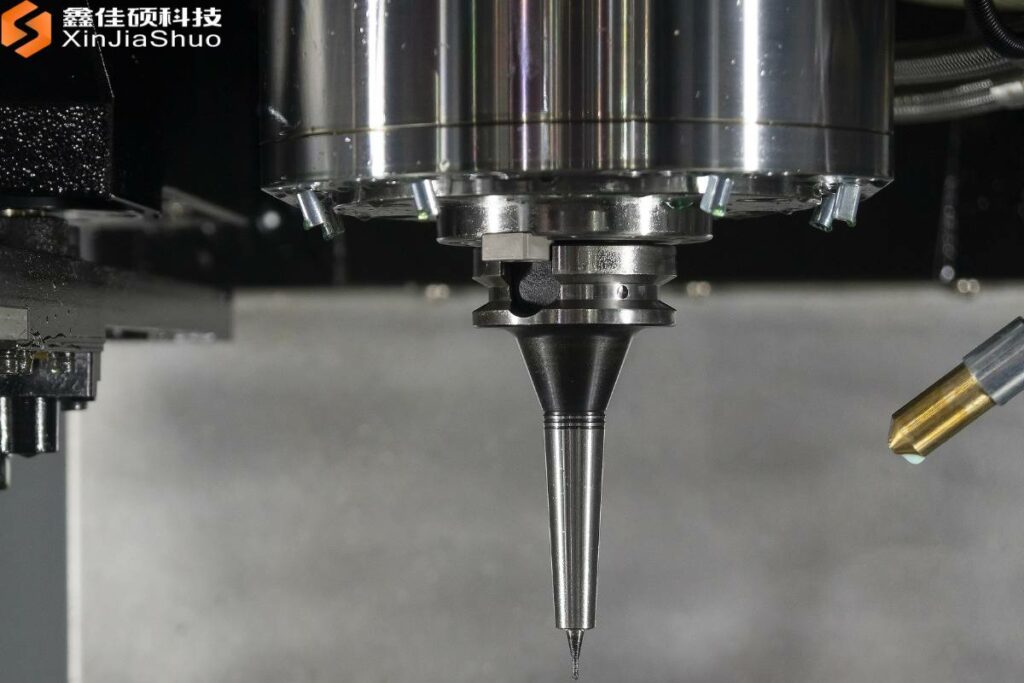

end mill holder in precision machining

2. Minimizing Tool Deflection

Tool deflection, or the deviation of a tool from its intended path, can be the enemy of precision. It impacts the quality of the finished product and can lead to tool breakage. An end mill holder’s design minimizes this deflection, particularly its taper and grip strength.

By securing the end mill in its optimal position, the holder ensures the tool follows its intended trajectory, leading to precise cuts and desired outcomes.

3. Prolonging Tool Lifespan through Proper Fit

Every tool has a lifespan, and maximizing this lifespan can lead to significant cost savings in the long run. One major contributor to premature tool wear is an improper fit. With their meticulously engineered bores, end mill holders ensure each tool is held perfectly. This guarantees optimal tool performance and reduces undue stress and wear.

Consequently, tools last longer, and replacement cycles are extended, further solidifying the holder’s role in precision machining’s economic efficiency.

Materials and Manufacturing of End Mill Holders

End mill holders are quintessential examples of meticulous engineering, and their material composition is pivotal in their effectiveness. Primarily, high-grade steel stands out as the preferred choice due to its robustness, wear resistance, and ability to withstand the rigors of machining. Beyond steel, hardened alloy and tungsten carbide also find their way into certain specialized holders, offering enhanced durability.

The manufacturing of these holders is equally rigorous. Precision is paramount. Advanced CNC machining processes are employed to craft these holders, ensuring that every minute detail, from the taper to the internal bore, is perfected. Furthermore, post-manufacturing processes like heat treatment might be applied to improve durability and longevity. This commitment to material selection and precision-focused manufacturing positions end mill holders as indispensable assets in the machining world.

Safety and Maintenance Tips for End Mill Holders

Ensuring the longevity and effectiveness of end mill holders hinges on adhering to best practices in both handling and maintenance.

Firstly, proper handling is fundamental. It’s vital to avoid dropping the holder or subjecting it to unnecessary impact, as this could compromise its precision alignment or introduce microscopic cracks, affecting its performance.

Regular inspections play a pivotal role in maintenance. Over time, even the sturdiest holders can exhibit signs of wear and tear. Checking for visible damages, deformities, or corrosion can preempt potential failures. Furthermore, monitoring the fit of the tool within the holder can also provide insights into its condition.

Lastly, recognizing when to replace an end mill holder is crucial. If inspections reveal that the holder no longer maintains a secure or aligned grip or if it has sustained significant damage, it’s prudent to consider its replacement to ensure continued machining accuracy.


What are the different types of end mill holders?

There are several different types of end mill holders available on the market today. One common type is the R8 taper end mill holder, designed to fit a standard R8 collet. This type of holder is commonly used in manual milling machines and is known for its simplicity and ease of use. Another popular type is the CAT or BT taper end mill holder, designed to fit into CNC machines. These holders are typically made from high-quality materials such as hardened steel to provide maximum stability and precision.

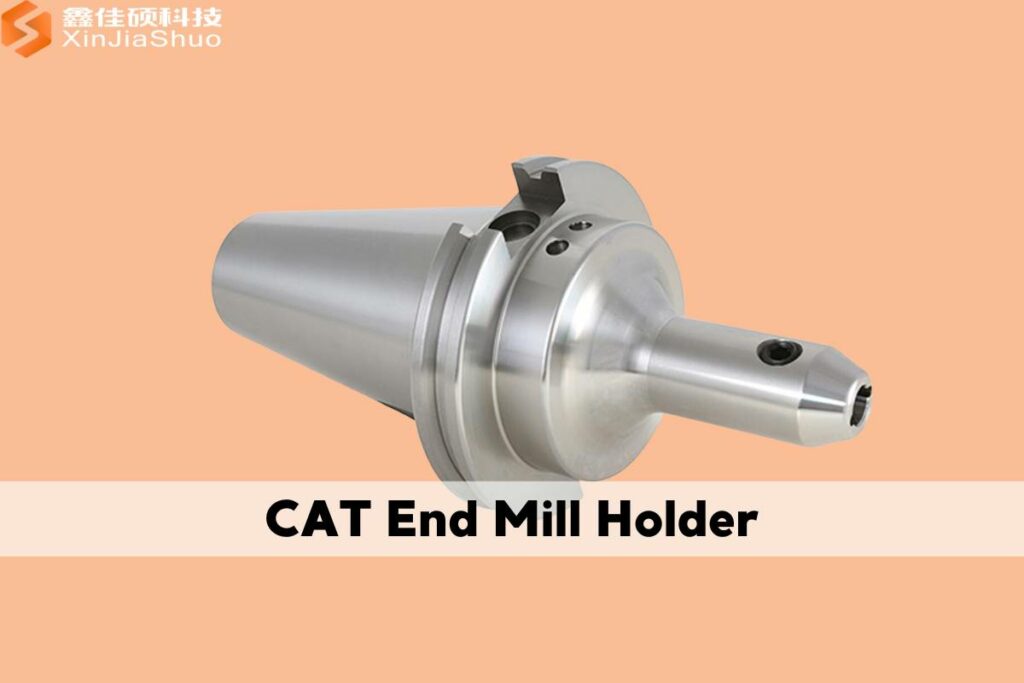

CAT50 end mill holder

Some end mill holders also feature a coolant bore, which allows for the passage of coolant through the tool to improve cutting performance and extend tool life. Other end mill holders include straight shank holders, commonly used in drill presses, and shank adapters, which allow different-sized tools to be used with a single holder.

Overall, the choice of end mill holder depends on the specific application and machine being used.

How does an end mill holder differ from a collet chuck?

End mill holders secure tools using a set screw, providing a stable grip. Collet chucks, on the other hand, employ collets that compress around the tool, offering a more flexible yet precise grip. Both have their merits, with the choice often dependent on the specific machining application and tool type.

Why is the taper design in an end mill holder important?

The taper design ensures a secure fit within the machine’s spindle, maximizing contact and minimizing vibrations. This design enhances stability and precision during machining operations, preventing tool deflection and ensuring consistent, accurate results.

How do I select the right end mill holder for my machining task?

Selection depends on your tool’s shank diameter, the machine’s spindle type, and the operation’s requirements. Ensure compatibility with your CNC machine, consider tool overhang, and prioritize holders of durable materials. Consulting the machine’s manual or a specialist can also provide valuable insights.

Can one end mill holder fit all types of end mills?

No, end mill holders are designed for specific shank diameters. While they might accommodate a range, using an inappropriate size compromises grip and accuracy. Matching the holder’s internal bore diameter with the tool’s shank is vital for optimal performance.

How often should I inspect or replace my end mill holder?

Regularly inspect for signs of wear, misalignment, or damage after every few operations. The frequency of replacement depends on usage intensity and material quality. If you notice consistent machining inaccuracies or visible wear and tear, it might be time for a replacement to ensure optimal results.


End mill holders stand as indispensable assets in the realm of precision machining. Their design, material, and functionality converge to ensure optimal results, highlighting their importance in achieving unparalleled machining accuracy and efficiency.
